    Audio Capacitance General Purpose Capacitor 680uf 25v UPL1E681M1012 125℃

    Ask Lasest Price
    Brand Name : UNICON
    Model Number : UPL1E681M1012
    Price : Negotiable
    Payment Terms : D/A, D/P, T/T, Western Union, MoneyGram, L/C
    Supply Ability : Available Quantity 30000 Pieces
    Delivery Time : Negotiable
    • Product Details
    • Company Profile

    Audio Capacitance General Purpose Capacitor 680uf 25v UPL1E681M1012 125℃

    25v680uf Solid Capacitors Correction Circuit Protection Cap Power supply filtering UPL1E681M1012 125℃


    Product Range
    • Conductive Polymer Solid State Industrial Grade Electrolytic Capacitors 125℃ 10mm*12mm
    • LARGE CAN TYPE ALUMINUM ELECTROLYTIC CAPACITORS
    App Characteristics
    • Series, Radial Lead, 125℃ High C/V
    • Low ESR & high ripple current capability
    • Endurance: 2,000 hours at 125℃
    • Capacitance range:25V
    • Rated capacitance:680UF
    • Suitable for Switching Power supply, Inverter etc,Audio Capacitance
    • RoHS Compliant /Non-solvent proof type
    Basic Data
    ItemsCharacteristics
    ManufacturerUNICON
    Operating Temperature Range-55 + 125℃
    Rated Voltage Range25V
    Nominal Capacitance Range680UF
    Size10mm*12mm
    Capacitance Tolerance±20% (120Hz, 20℃)
    Surge VoltageRated Voltage x 1.15
    Dissipation Factor (tan δ)0.12 or less, Less than or equal to the specified value at 20C, 120 Hz
    EnduranceThe following specifications shall be satisfied when the capacitors are restored to 20℃ after the rated voltage is applied for 2,000 hours at 125℃
    Bias Humidity TestThe following specifications shall be satisfied when the capacitors are restored to 20℃ after subjecting them at 60℃, 90 to 95% RH for 1,000 hours.
    Surge Voltage TestThe capacitors shall be subjected to 1,000 cycles each consisting of charge with the surge voltage specified At 105℃ for 30 seconds through a protective resistor (R=1KΩ) and discharge for 5 minutes 30 seconds
    MarkingWhite print on black sleeve
    Failure Rate0.5% per 1,000 hours maximum (Confidence level 60% at 105℃)

    In case of any doubt arises, measure the leakage current after voltage applied for 120 minutes at 105℃.

    DOWNLOAD DATASHEET
    Application
    • Power supply filtering
    • Power supply
    • Inverter etc
    • Audio Capacitance
    • Automotive power supply
    • concert
    • network communication
    • New energy
    • household appliances
    • 3C digital
    • automotive electronics
    • measuring instruments
    Order Process
    Add Parts to RFQ formSubmit RFQWe reply within 24 hours
    You confirm orderPaymentShip out your order
    Dimension

    Audio Capacitance General Purpose Capacitor 680uf 25v UPL1E681M1012 125℃

    Audio Capacitance General Purpose Capacitor 680uf 25v UPL1E681M1012 125℃

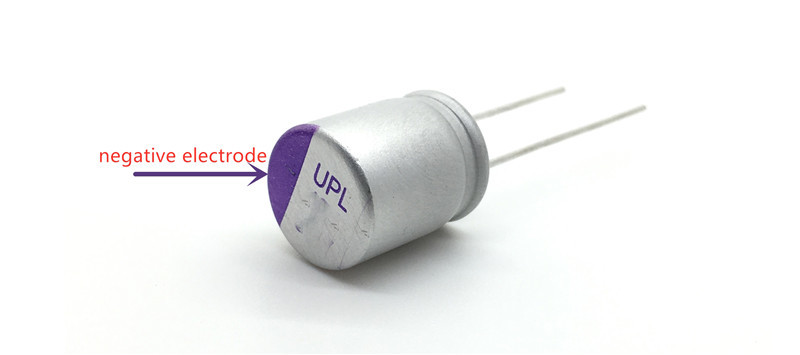

    Product diagram

    Audio Capacitance General Purpose Capacitor 680uf 25v UPL1E681M1012 125℃Audio Capacitance General Purpose Capacitor 680uf 25v UPL1E681M1012 125℃Audio Capacitance General Purpose Capacitor 680uf 25v UPL1E681M1012 125℃

    Audio Capacitance General Purpose Capacitor 680uf 25v UPL1E681M1012 125℃Audio Capacitance General Purpose Capacitor 680uf 25v UPL1E681M1012 125℃Audio Capacitance General Purpose Capacitor 680uf 25v UPL1E681M1012 125℃

    Audio Capacitance General Purpose Capacitor 680uf 25v UPL1E681M1012 125℃

    Audio Capacitance General Purpose Capacitor 680uf 25v UPL1E681M1012 125℃Audio Capacitance General Purpose Capacitor 680uf 25v UPL1E681M1012 125℃Audio Capacitance General Purpose Capacitor 680uf 25v UPL1E681M1012 125℃

    Audio Capacitance General Purpose Capacitor 680uf 25v UPL1E681M1012 125℃Audio Capacitance General Purpose Capacitor 680uf 25v UPL1E681M1012 125℃​​
