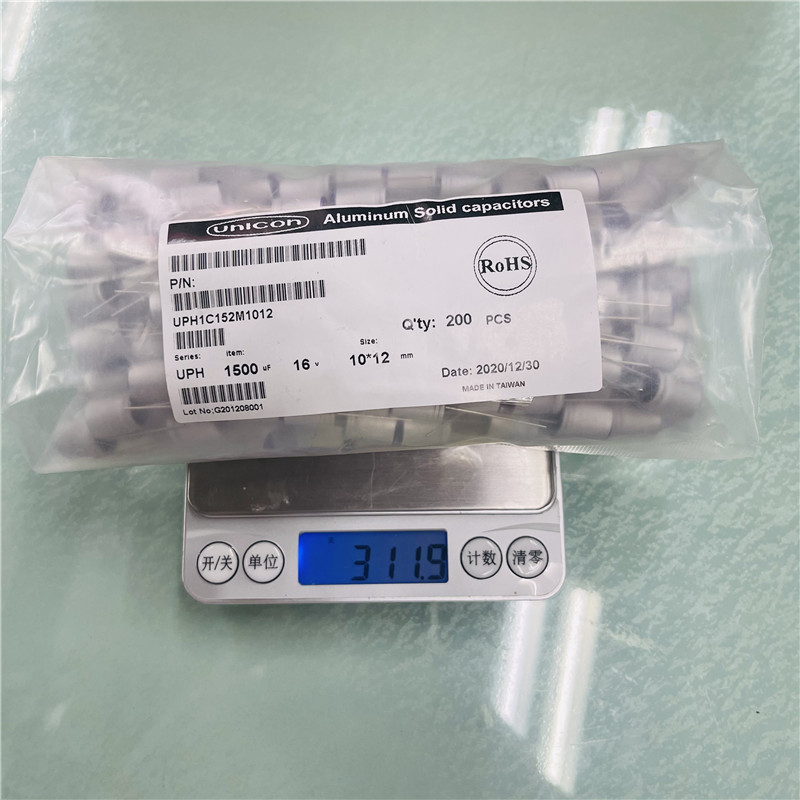

    16V1500UF Solid Electrolytic Capacitors Power Filter Cap UPH1C152M1012 Low ESR Capability

    Ask Lasest Price
    Brand Name : UNICON
    Model Number : UPH1C152M1012
    Price : Negotiable
    Payment Terms : D/A, D/P, T/T, Western Union, MoneyGram, L/C
    Supply Ability : Available Quantity 30000 Pieces
    Delivery Time : Negotiable
    Certification : RoHS
    • Product Details
    • Company Profile

    16V1500UF Solid Electrolytic Capacitors Power Filter Cap UPH1C152M1012 Low ESR Capability

    16V1500UF Solid Electrolytic Capacitors Power Filter Cap UPH1C152M1012 Low ESR Capability


    Product Range
    • Conductive Polymer Solid State Industrial Grade Electrolytic Capacitors 125℃
    • LARGE CAN TYPE ALUMINUM ELECTROLYTIC CAPACITORS
    App Characteristics
    • Series, Radial Lead, 125℃ High C/V
    • Low ESR & high ripple current capability
    • Endurance: 2,000 hours at 125℃
    • Capacitance range:16V
    • Rated capacitance:1500UF
    • Suitable for Switching Power supply, Inverter etc
    • RoHS Compliant /Non-solvent proof type
    Basic Data
    ItemsCharacteristics
    ManufacturerUNICON
    Operating Temperature Range-55 + 125℃
    Rated Voltage Range16V
    Nominal Capacitance Range1500UF
    Size10mm*12mm
    Capacitance Tolerance±20% (120Hz, 20℃)
    Surge VoltageRated Voltage x 1.15
    Dissipation Factor (tan δ)0.12 or less, Less than or equal to the specified value at 20C, 120 Hz
    EnduranceThe following specifications shall be satisfied when the capacitors are restored to 20℃ after the rated voltage is applied for 2,000 hours at 125℃
    Bias Humidity TestThe following specifications shall be satisfied when the capacitors are restored to 20℃ after subjecting them at 60℃, 90 to 95% RH for 1,000 hours.
    Surge Voltage TestThe capacitors shall be subjected to 1,000 cycles each consisting of charge with the surge voltage specified At 105℃ for 30 seconds through a protective resistor (R=1KΩ) and discharge for 5 minutes 30 seconds
    MarkingWhite print on black sleeve
    Failure Rate0.5% per 1,000 hours maximum (Confidence level 60% at 105℃)

    In case of any doubt arises, measure the leakage current after voltage applied for 120 minutes at 105C.

    DOWNLOAD DATASHEET

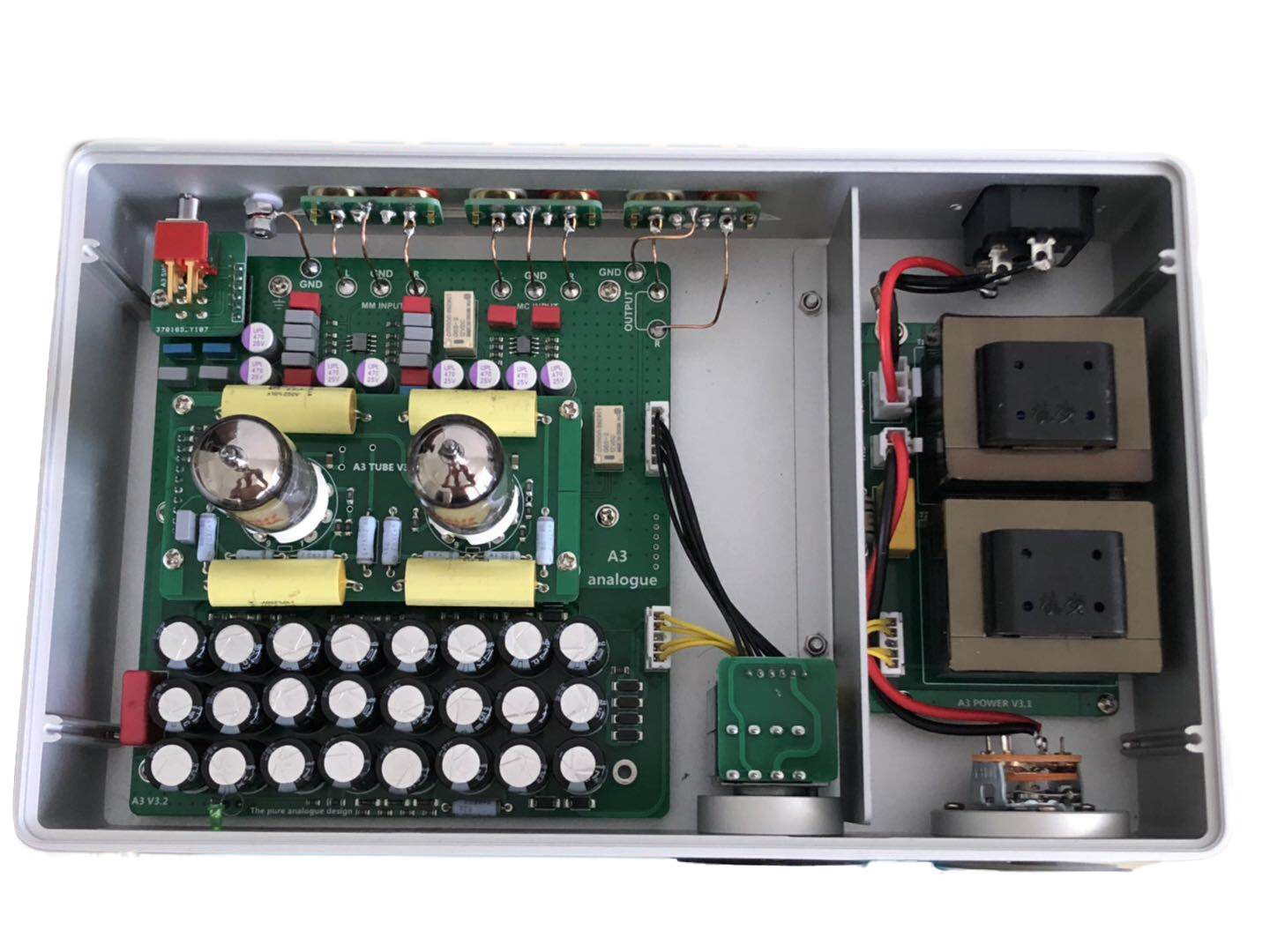

    Application
    • LED Power Filter
    • Automotive power supply
    • Concert
    • Network communication
    • New energy
    • Household appliances
    • 3C digital
    • Automotive electronics
    • Measuring instruments
    Order Process
    Add Parts to RFQ formSubmit RFQWe reply within 24 hours
    You confirm orderPaymentShip out your order
    Dimension

    16V1500UF Solid Electrolytic Capacitors Power Filter Cap UPH1C152M1012 Low ESR Capability


    Product diagram

    16V1500UF Solid Electrolytic Capacitors Power Filter Cap UPH1C152M1012 Low ESR Capability16V1500UF Solid Electrolytic Capacitors Power Filter Cap UPH1C152M1012 Low ESR Capability16V1500UF Solid Electrolytic Capacitors Power Filter Cap UPH1C152M1012 Low ESR Capability16V1500UF Solid Electrolytic Capacitors Power Filter Cap UPH1C152M1012 Low ESR Capability16V1500UF Solid Electrolytic Capacitors Power Filter Cap UPH1C152M1012 Low ESR Capability16V1500UF Solid Electrolytic Capacitors Power Filter Cap UPH1C152M1012 Low ESR Capability

    16V1500UF Solid Electrolytic Capacitors Power Filter Cap UPH1C152M1012 Low ESR Capability

    16V1500UF Solid Electrolytic Capacitors Power Filter Cap UPH1C152M1012 Low ESR Capability16V1500UF Solid Electrolytic Capacitors Power Filter Cap UPH1C152M1012 Low ESR Capability16V1500UF Solid Electrolytic Capacitors Power Filter Cap UPH1C152M1012 Low ESR Capability16V1500UF Solid Electrolytic Capacitors Power Filter Cap UPH1C152M1012 Low ESR Capability16V1500UF Solid Electrolytic Capacitors Power Filter Cap UPH1C152M1012 Low ESR Capability​​
