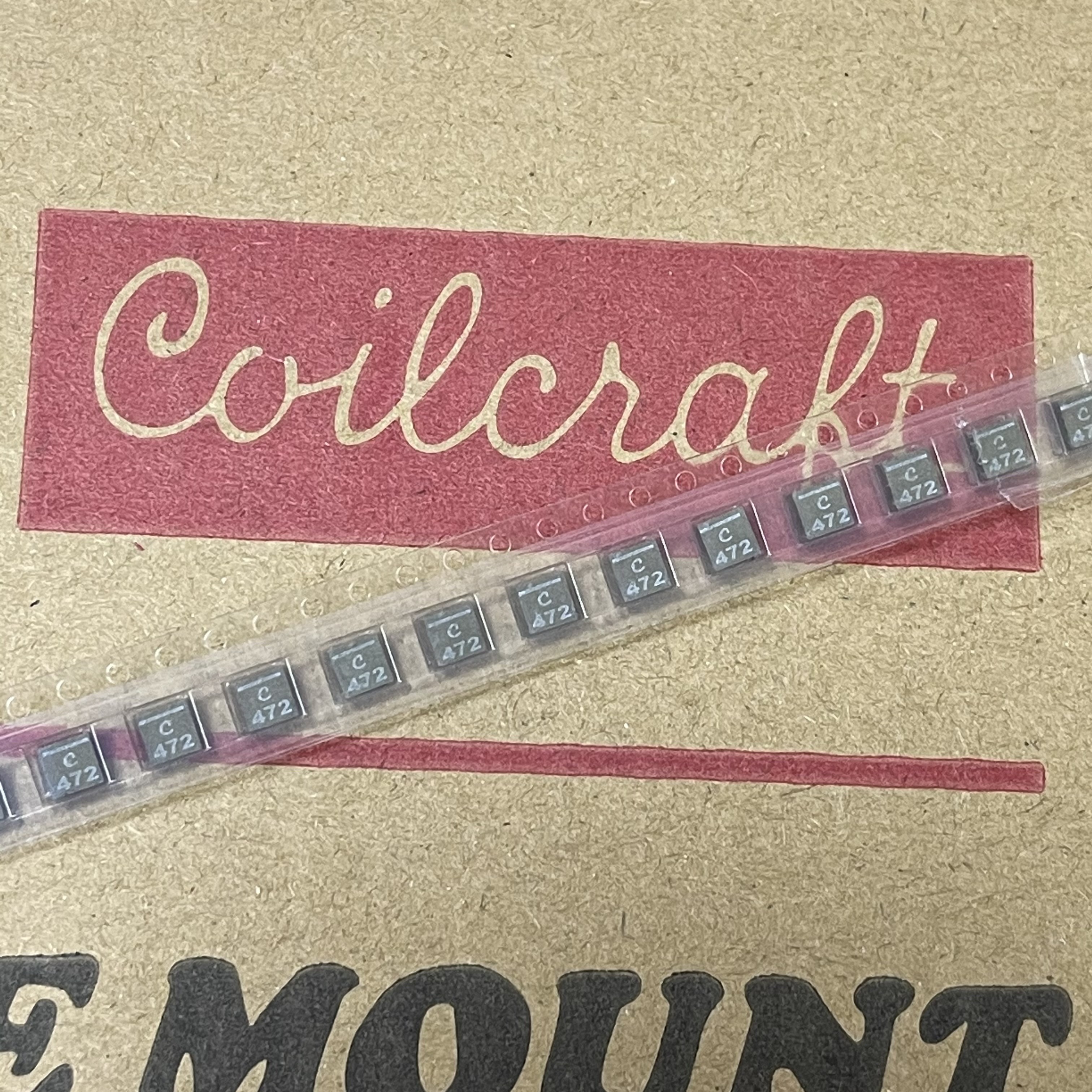

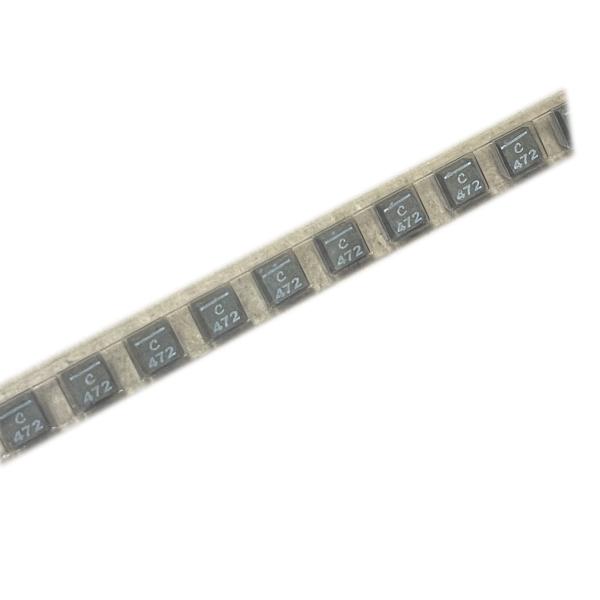

    Coilcraft High Current Shielded Power Inductors Low power losses 4.7UH XAL4030-472MEC

    Ask Lasest Price
    Brand Name : Coilcraft
    Model Number : XAL4030-472MEC
    Price : Quote by Email
    Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram
    Supply Ability : Available Quantity 30000 Pieces
    Delivery Time : Can Ship Immediately
    • Product Details
    • Company Profile

    Coilcraft High Current Shielded Power Inductors Low power losses 4.7UH XAL4030-472MEC

    XAL4030-472MEC Coilcraft High Current Shielded Power Inductors Low power losses 4.7UH 20% 5.1A 4X4X3MM
    XAL40xx high-performance molded power inductors are mechanically rugged and magnetically shielded for use in high-density power converter circuits. They offer high current ratings and are ideal for high switching frequencies with low AC losses.
    • Low power losses (AC and DC)
    • Soft saturation characteristic to withstand high current spikes
    • Magnetically shielded
    • Composite construction minimizes audible buzzing
    • No thermal aging – perfect for high temperature applications
    • AEC-Q200 Grade 1 (−40°C to +125°C) with a 165°C max part temperature
    Basic Data
    Product AttributeAttribute Value
    Coilcraft
    Product Category:Power Inductors - SMD
    RoHS:Details
    Power Choke
    SMD/SMT
    1616 (4040 metric)
    Shielded
    4.7 uH
    20 %
    5.1 A
    44.1 mOhms
    4.5 A
    - 40 C
    + 125 C
    -
    PCB Mount
    4 mm
    4 mm
    3.1 mm
    -
    Composite
    AEC-Q200
    XAL4030
    Reel
    Cut Tape
    Reel
    Application:Automotive
    Brand:Coilcraft
    Case Code - in:1616
    Case Code - mm:4040
    Product:Power Inductors
    Product Type:Fixed Inductors
    Self Resonant Frequency:36 MHz
    500
    Subcategory:Inductors, Chokes & Coils
    Termination:Standard
    Test Frequency:1 MHz
    Part # Aliases:XAL4030-472MEB
    Unit Weight:0.003069 oz

    Part number 1Inductance (µH) 2
    (Tolerance: ±20%)
    DCR (mΩ) 3SRF typ (MHz) 4Isat (A) 5Irms (A) 6
    typmax20°C rise40°C rise
    XAL4020-221ME_0.225.86.419118.712.016.8
    XAL4020-401ME_0.407.68.314512.510.014.0
    XAL4020-601ME_0.609.510.510610.47.911.7
    XAL4020-102ME_1.013.314.679.08.76.79.6
    XAL4020-122ME_1.217.819.569.07.96.69.0
    XAL4020-152ME_1.521.523.664.07.15.27.5
    XAL4020-222ME_2.235.238.752.05.64.05.5
    XAL4030-332ME_3.326.028.643.05.95.06.6
    XAL4030-472ME_4.740.144.136.04.63.95.1
    XAL4030-682ME_6.867.474.129.03.63.03.9
    XAL4040-822ME_8.260.866.927.04.02.43.4
    XAL4040-103ME_1084.092.424.03.02.23.1
    XAL4040-153ME_1510912020.02.92.02.8
